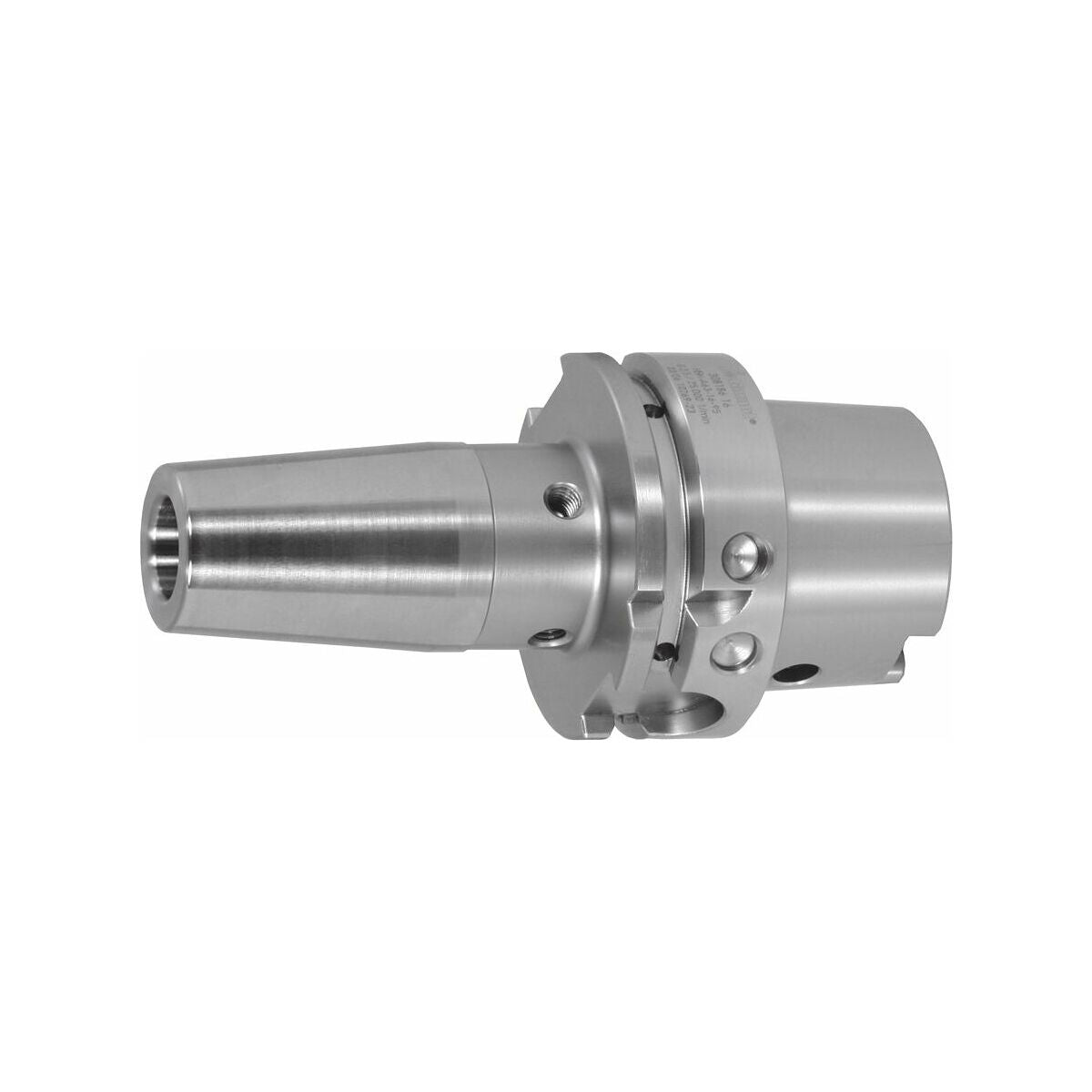

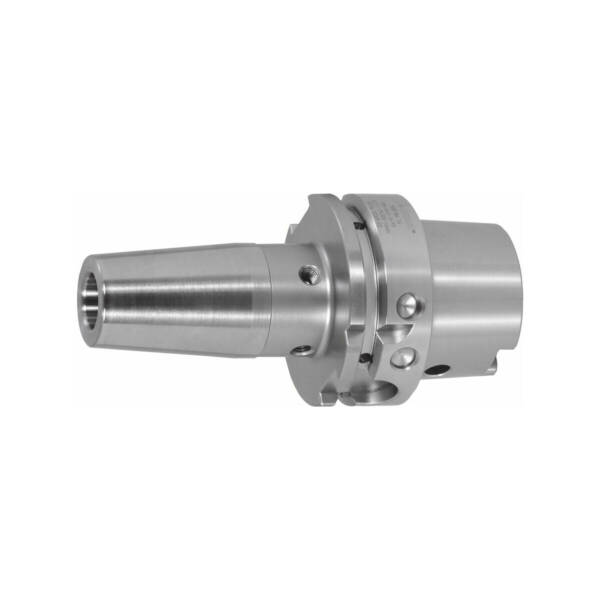

ĐẦU KẸP NHIỆT 4MM HSK-A 63 A = 160MM GARANT 308205 4

Description

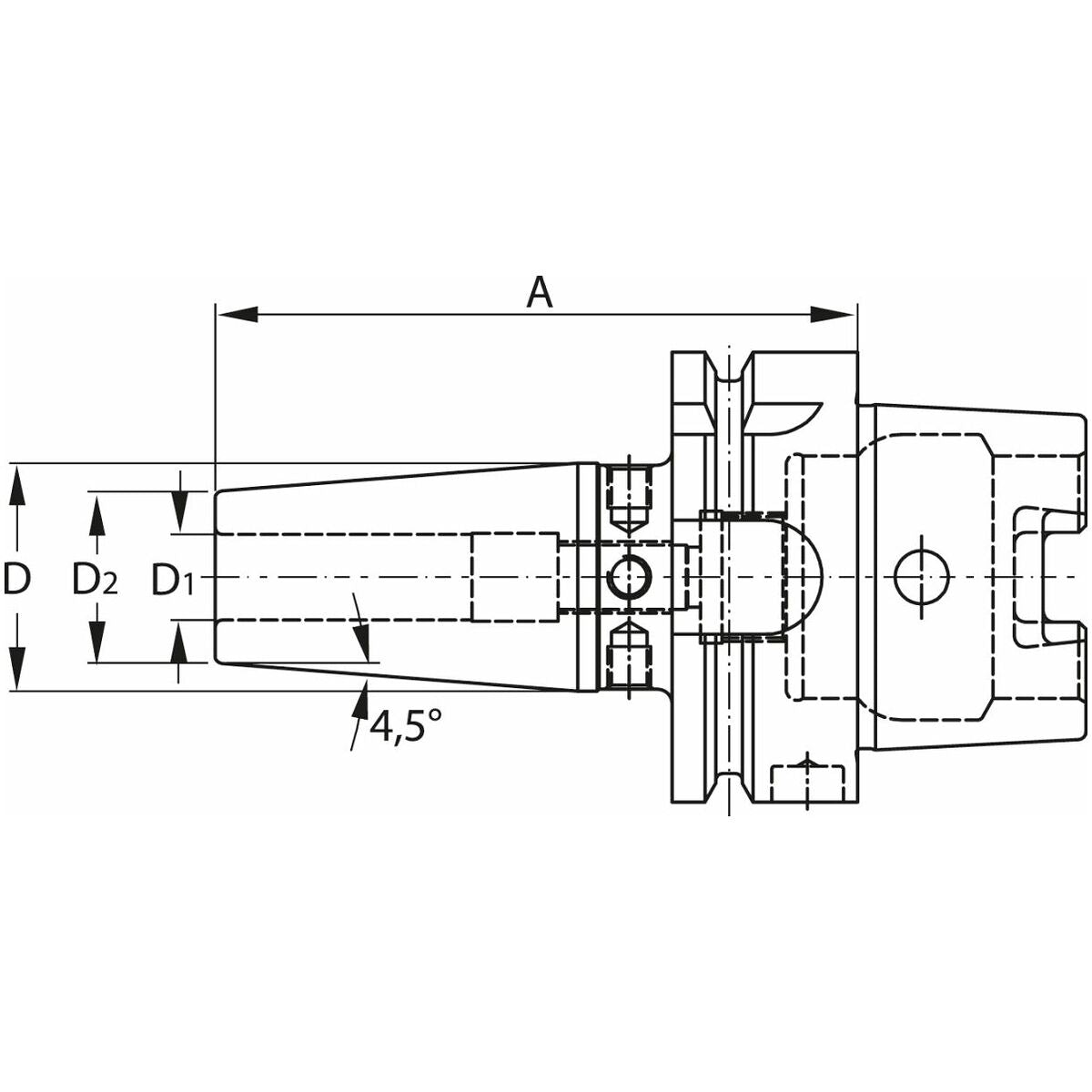

Version:From clamping ⌀ D1 6 mm with tapped holes for balancing screws.
Integral length adjustment of the tool from clamping ⌀ D1 6 mm (adjustment travel 10 mm).
High-temperature steel.
Size 3 − 5 for carbide, from size 6 for HSS and carbide.
With Balluffchip bores.GARANT:HSK mating faces machined.
All shanks hard turned (for smooth running!).Application:For holding end mills and drills with parallel shank to h6 tolerance.
Suitable for inductive, contact and hot air shrink-fit units.Supplied with:For chucks with length adjustment including a length adjustment screw (from clamping ⌀ D1 6 mm).Optional extras:Coolant tube No.
309880, socket wrench No.
309890, shrink-fit chuck extension No.
302410 − 302416, shrink-fit units No.
354210 − 354450, balancing screw set No.
309906 180.
