CẦN SIẾT CÓ CHỈNH LỰC GARANT 656055 25 NM (chưa bao gồm đầu nối siết)

Description

Version:Handy and very compact one-armed torque wrench, adjustable by scale and self-triggering.
Extremely high repeat accuracy, since high quality materials are used throughout.
Wearing parts, such as compression springs, are specially pre-treated and sorted.

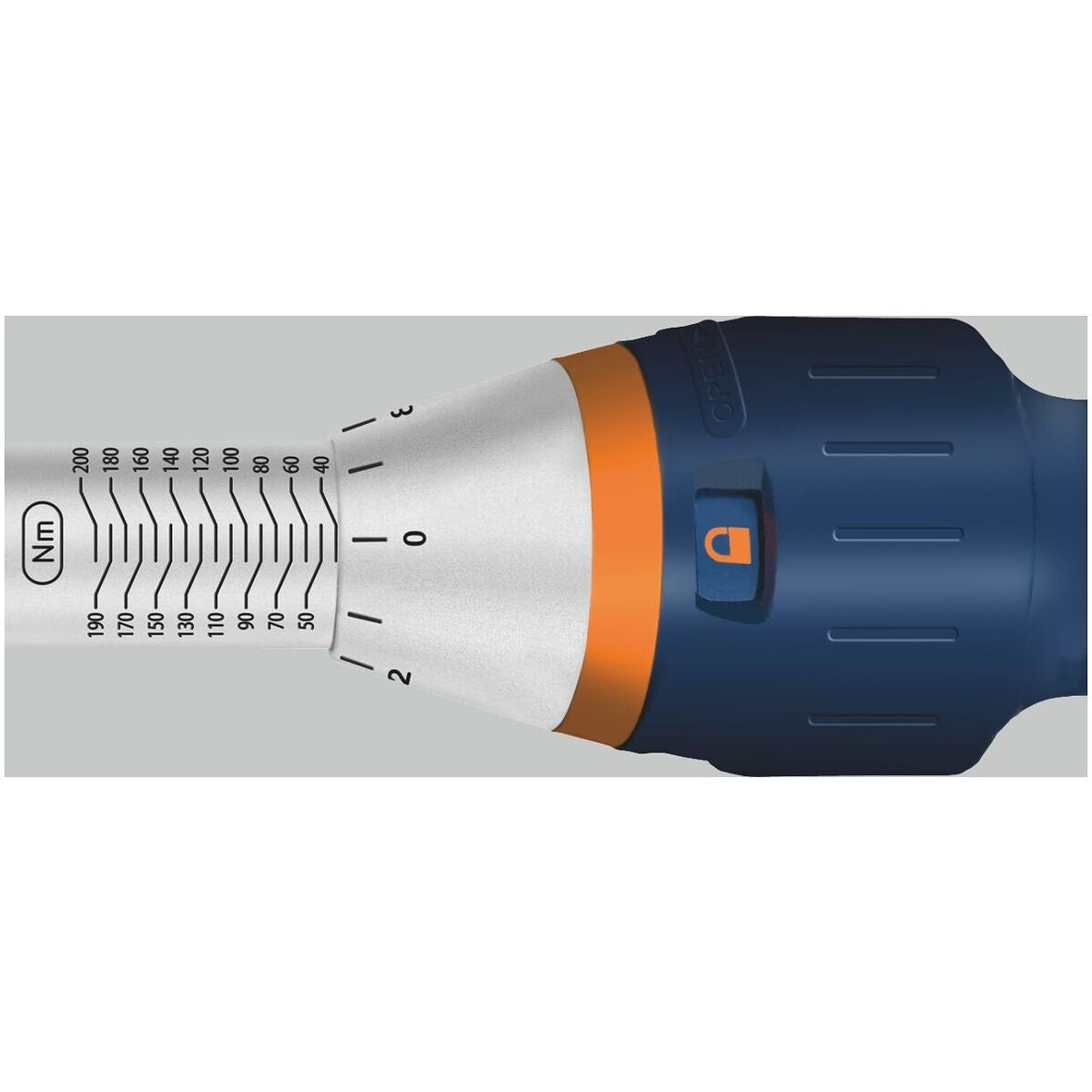

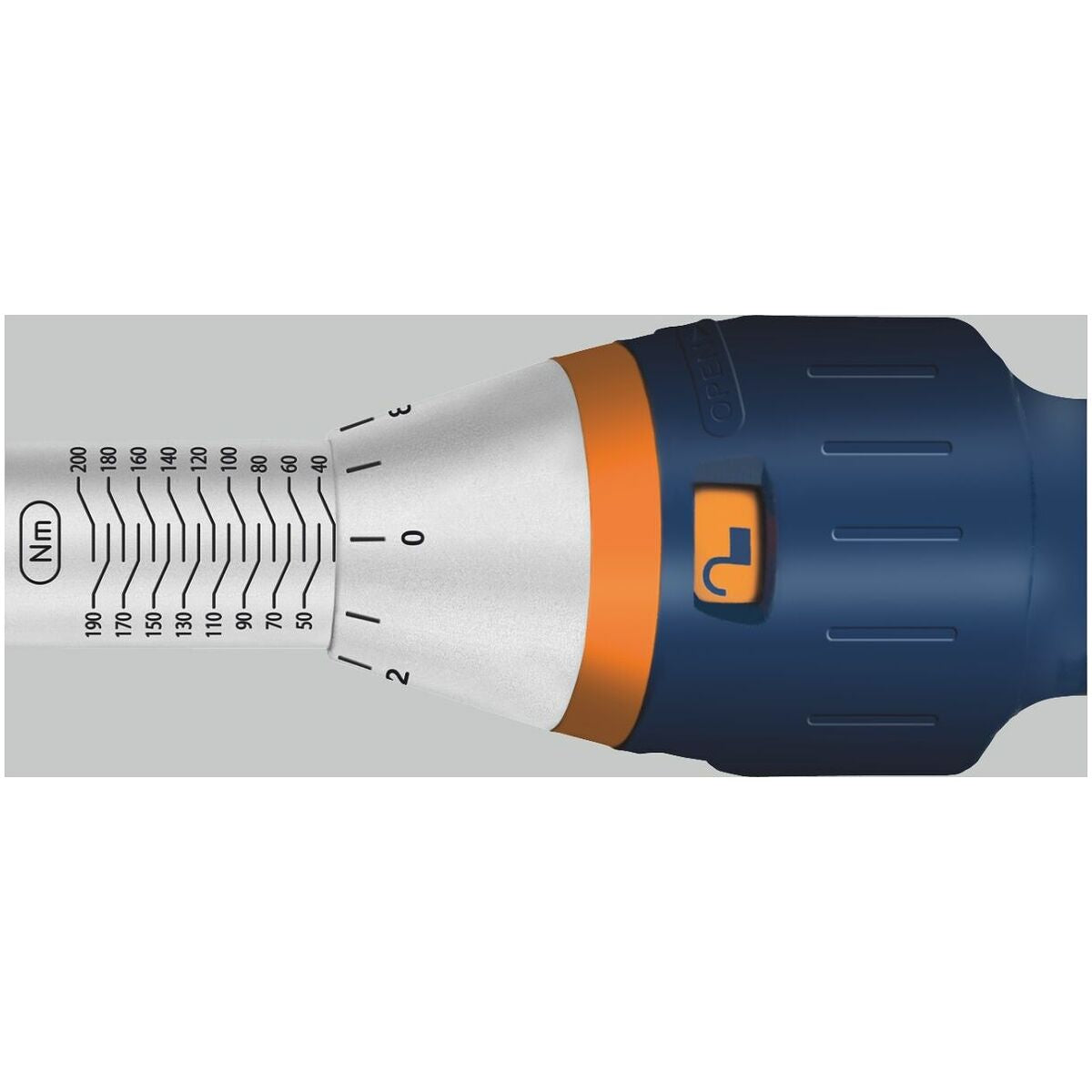

Reversible ratchet for left-hand and right-hand tightening.
Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
Basic tool with square plug-in socket (without plug-in head).
Suitable spare jaws No.
657582 – 657950.Units of measure:Nm Function:The wrench triggers giving a “signal” (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again.Application:For medium to larger batch productions.Standard:Tested to DIN EN ISO 6789.Accuracy:Of the displayed value only for right-hand tightening:±3 % Cutting data:Legend for drawing and formula:l1 = Lever length without plug-in headl2 = Adjusted reference dimension on the torque wrenchl3 = Lever length including factory calibration reference dimensionl4 = Reference dimension of the plug-in headL = Total length of the toolT1 = Torque to be setT2 = Specified torque Note:Calibration is only possible for right-hand tightening.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
